Standing frame
Color:
Light turquoise
Actual color may vary depending on screen settings.
The Octo standing frame is a modern device designed for children (90–130 cm, up to 50 kg) who require support in the verticalization process – both in posterior and anterior positioning. Its well-thought-out design, Octo supports the development of proper body posture, improves circulation and respiratory function, and enables the child to actively engage with their surroundings.
The device features adjustable pads with stabilizing belts that help maintain correct body alignment, ensuring comfort and safety during verticalization. The standing frame is also equipped with the innovative OctoStep foot support system, allowing for stable and comfortable foot positioning.
One of its key features is the abduction system, which enables precise positioning of the lower limbs in the frontal plane, supporting proper alignment of the hip joints.
The Octo standing frame can be expanded with practical accessories such as a therapy tray for easier activity-based sessions and a headrest for both anterior and posterior standing, providing comfortable head support. Thanks to these solutions, the Octo standing frame combines comfort, safety, and versatility, supporting the child in daily therapy while facilitating the work of therapists and caregivers.
Product details
Construction
The solid metal frame ensures durability and safe use. All support elements are finished with soft polyurethane foam pads and supports, increasing comfort during therapy. Parameter adjustment is intuitive and convenient, carried out using adjustable handle integrated into the standing frame structure, as well as an Allen key included in the set.
Adjustable Features

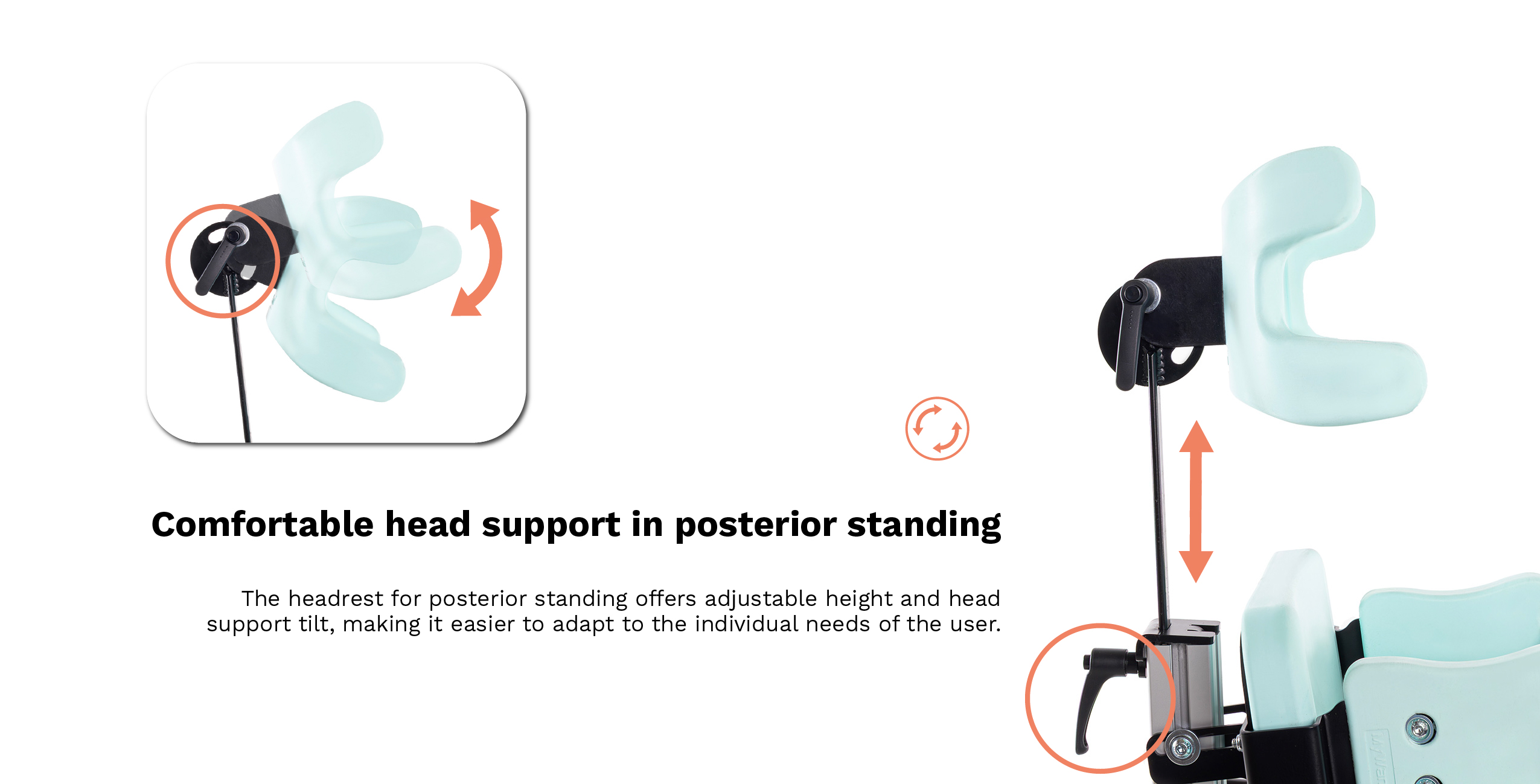

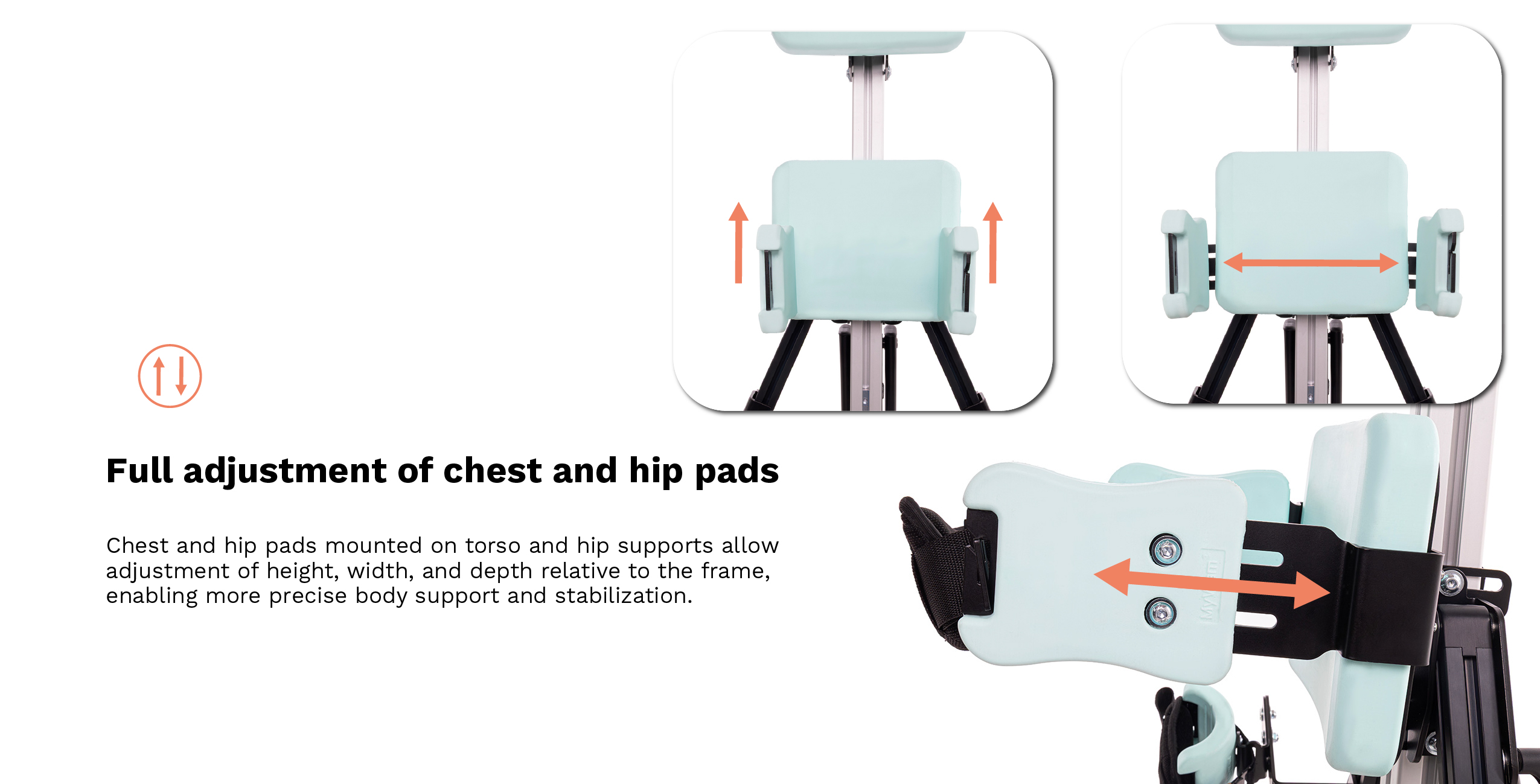

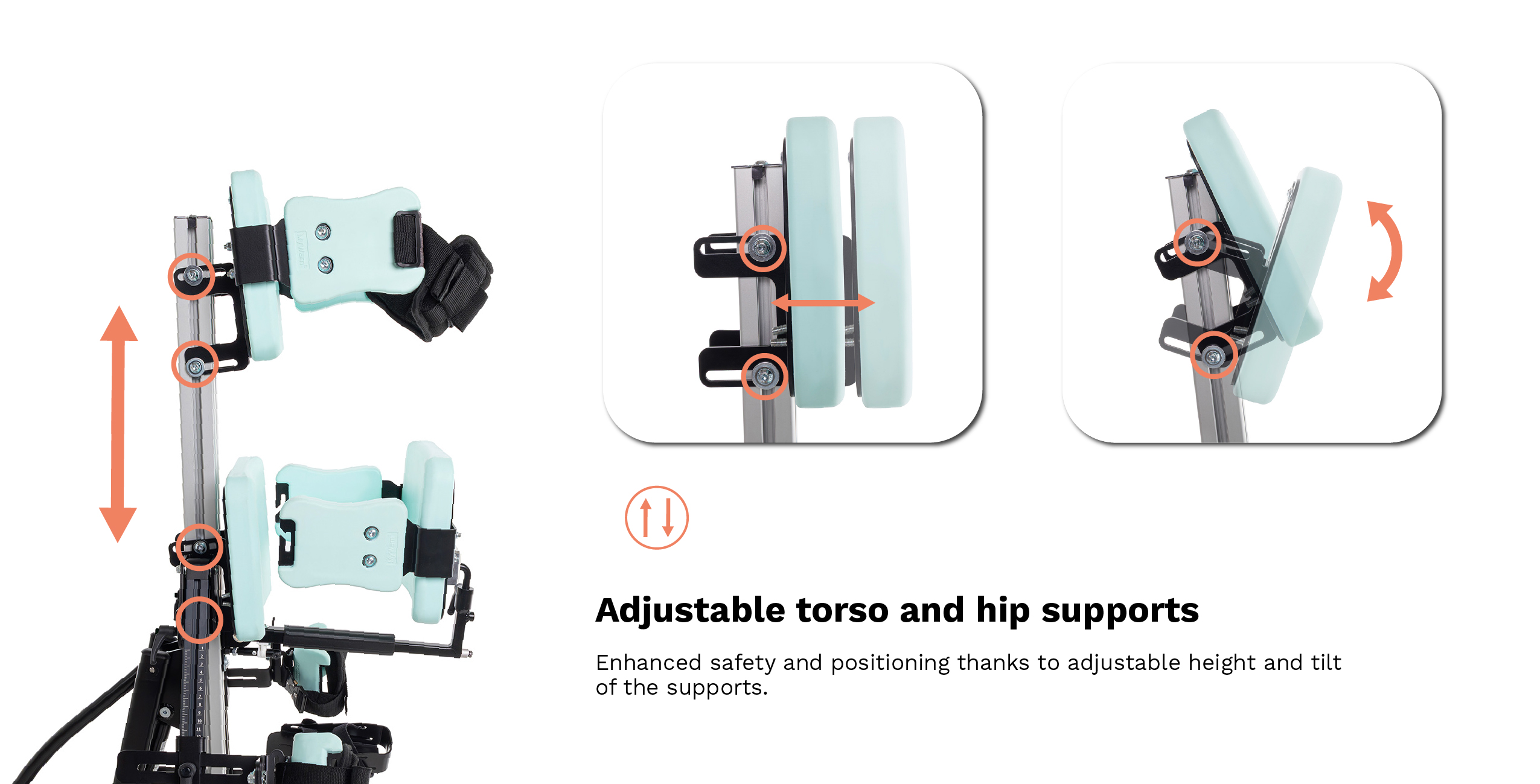

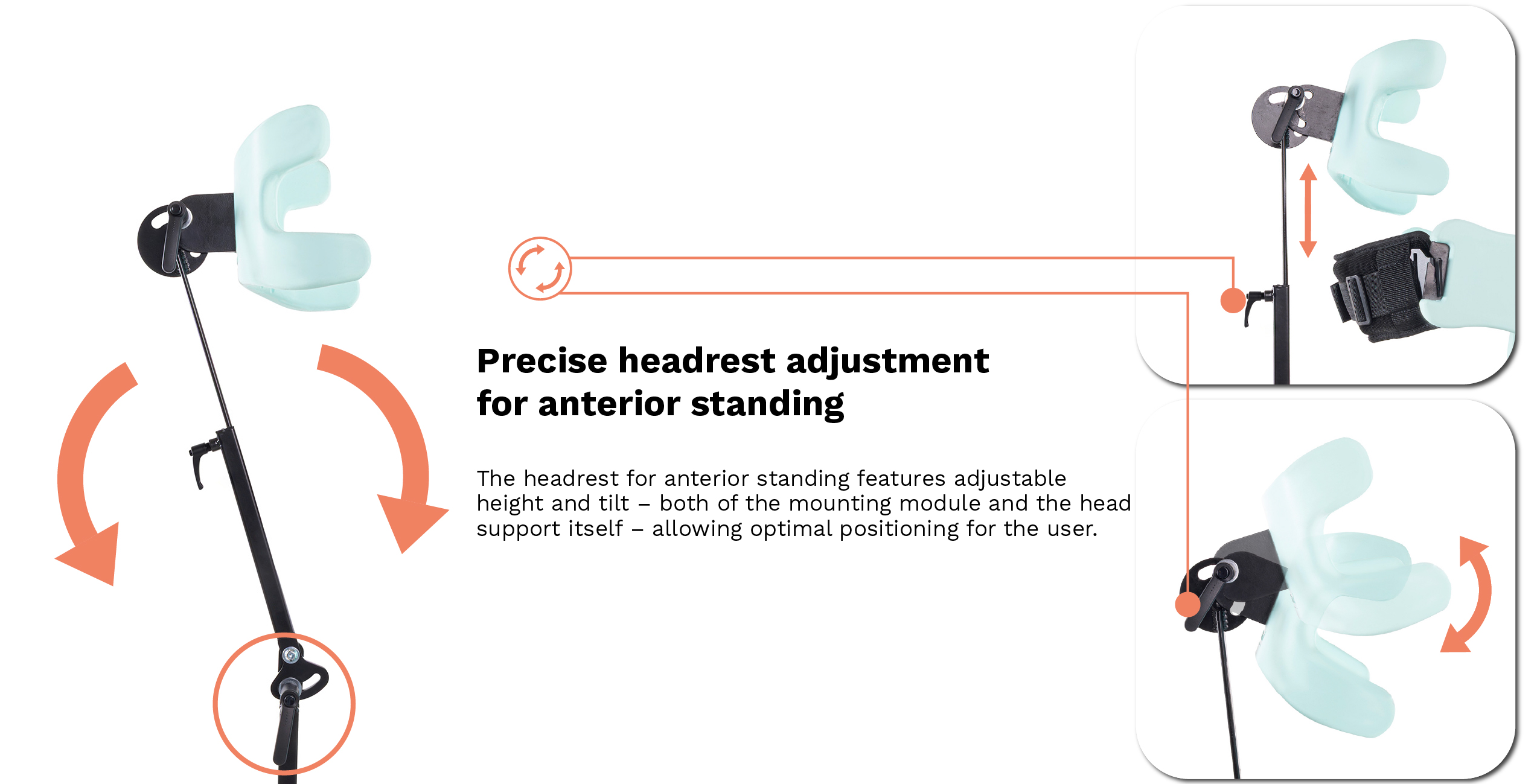

The standing frame offers a wide range of individual adjustments thanks to its adjustable chest and hip pads with stabilizing belts. It is also equipped with an adjustable torso support, hip support, and knee supports, allowing precise positioning of the child. Additionally, it can be fitted with adjustable headrests for both anterior and posterior standing, as well as an extra back support designed for anterior positioning.

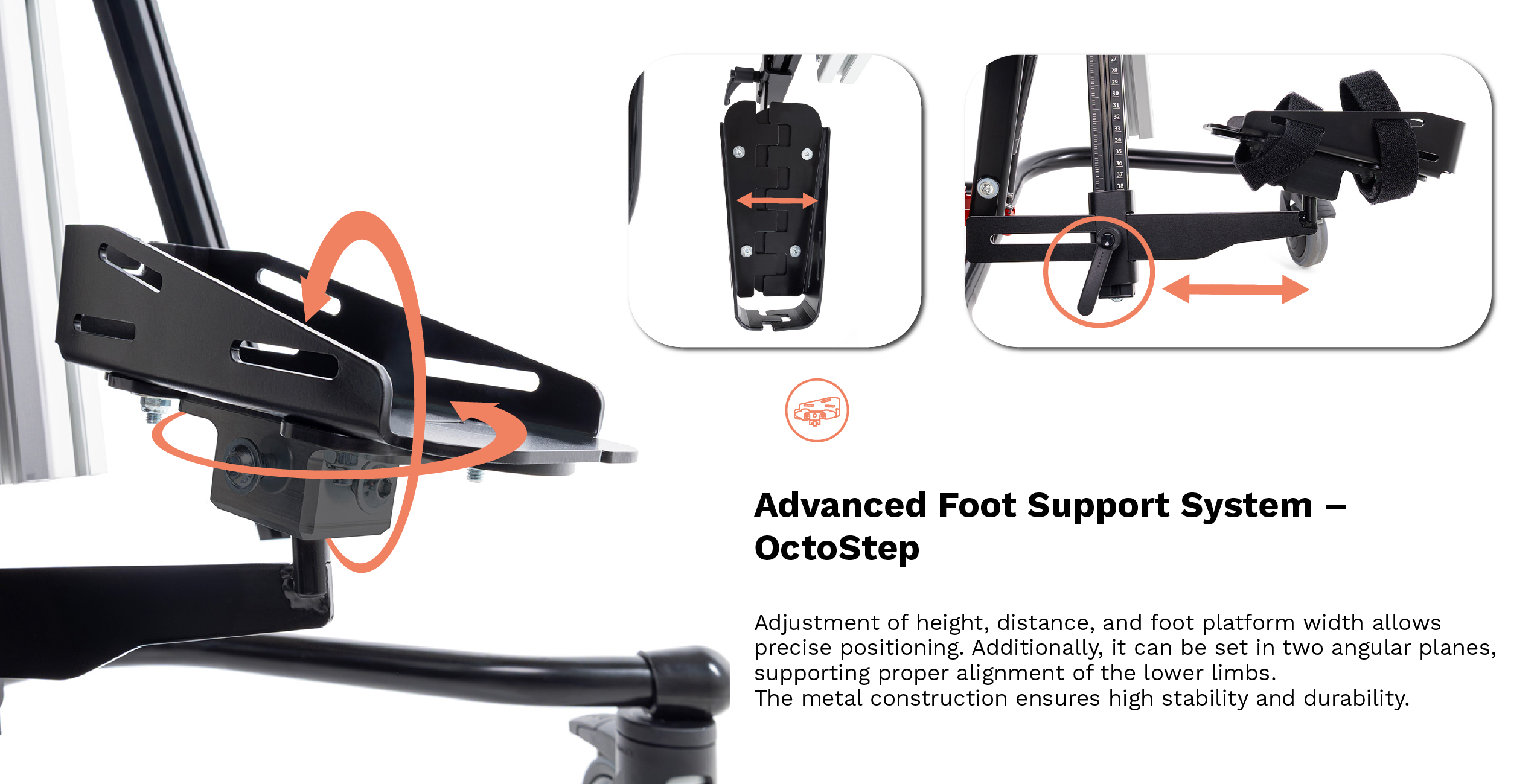

Advanced Foot Support System – OctoStep
The OctoStep foot support system allows precise positioning of the feet through adjustments in height, distance, and platform width. It also enables positioning in two angular planes, supporting proper alignment of the lower limbs. The metal construction ensures high stability and durability.

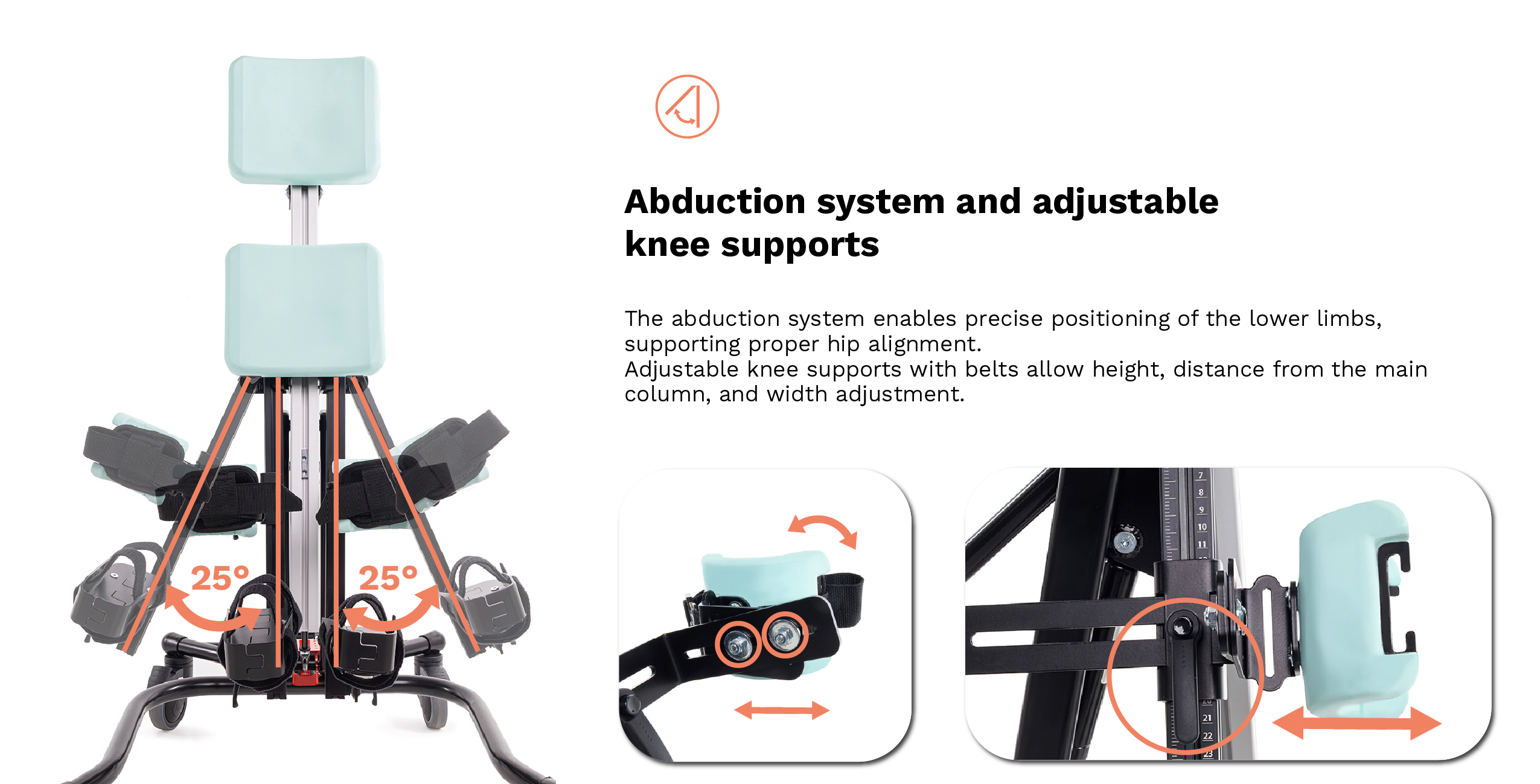

Hip Abduction System
The abduction system enables precise positioning of the lower limbs in the frontal plane, supporting proper alignment of the hip joints. This solution stabilizes the hips and pelvis while promoting activation and strengthening of the gluteal muscles, which is essential in the therapy process.
Independent brakes
Each wheel is equipped with an individual brake, ensuring maximum stability during use.
Key Features
Parameters
Total length of the standing frame
75 cm
Total width of the standing frame
67 cm
Total height of the standing frame
92 – 133 cm / 105 - 175 cm*
Total weight
25 – 41 kg
Headrest height
12 cm
Headrest width
22 cm
Torso / hip support height
21 cm
Torso / hip support width
25 cm
Knee support height
10 cm
Knee support width
8 cm**
Chest / hip pads height
12 cm
Chest / hip pads width
16 cm
Chest / hip pads spacing
19 - 26 cm
Height from foot support to torso support
80 - 100 cm
Height from foot support to pelvic support
45 - 65 cm
Height from foot support to knee support
16 - 31 cm
OctoStep foot platform back width
6 - 7 cm / 7 - 8 cm***
OctoStep foot platform front width
9 - 10 cm / 10 - 11 cm***
OctoStep foot platform length
21 cm / 24 cm***
Max. user weight
50 kg
User height
90 – 130 cm
* value given with headrest
** internal measurement
*** size M
Measurement tolerance: +/- 20mm, +/- 1.5kg, +/- 1°
The manufacturer reserves the right to change technical parameters.
Regulations
Adjusting the abduction angle of one leg
Adjusting the tilt angle of the standing frame column
See the Octo standing frame in 360 view
Accessories:
Included
Additional
Independent brake on all wheels
Foot support system - OctoStep
Hip pads with stabilizing belt
Chest pads with stabilizing belt
Pelvic support
Knee supports with stabilizing belts
Torso support
Gas spring release foot
Tool kit bag
Back support for anterior standing
Therapy tray
Headrest for anterior standing
Headrest for posterior standing
Informations
Indications
- cerebral palsy,
- paralysis of various origins,
- spina bifida,
- myelomeningocele,
- spinal muscular atrophy (SMA),
- metabolic disorders,
- scoliosis and postural defects,
- genetic disorders,
- all types of orthopedic indications.
Contraindications
- orthopedic contraindications,
- acute inflammatory conditions, fever,
- osteoporosis,
- joint contractures,
- neurological contraindications,
- severe pain preventing standing,
- foot deformities,
- lack of patient cooperation (e.g. severe consciousness disorders, agitation).
The standing frame should not be used in cases where the patient’s condition does not allow it. The user must never be left unattended in the device without adult supervision.
Important
The choice of a medical device appropriate for a specific disease entity and condition of the user must be made with the help of a specialist doctor or physiotherapist.
Before use, read the user manual and the label or consult your doctor, as this medical device may not be suitable for you.
