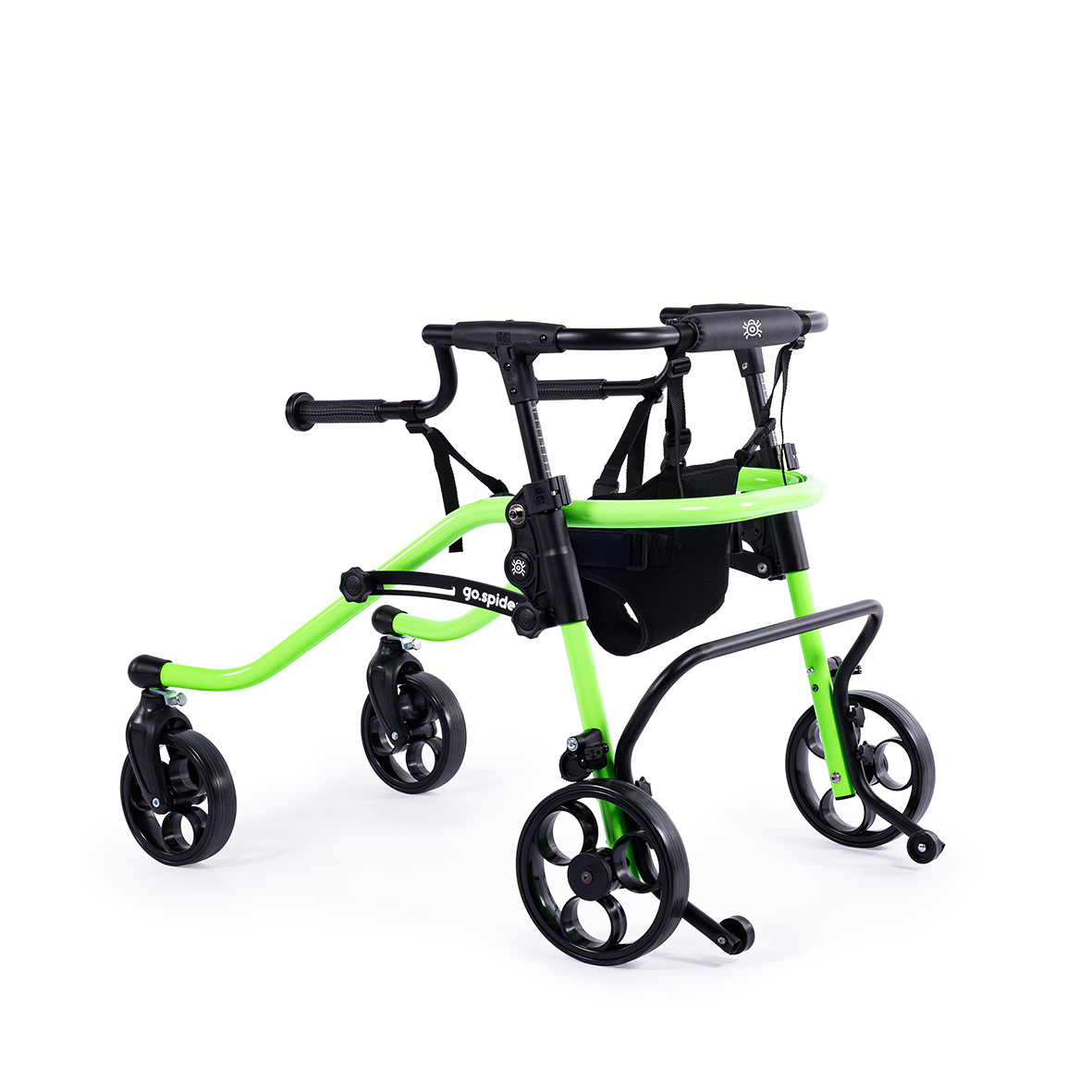

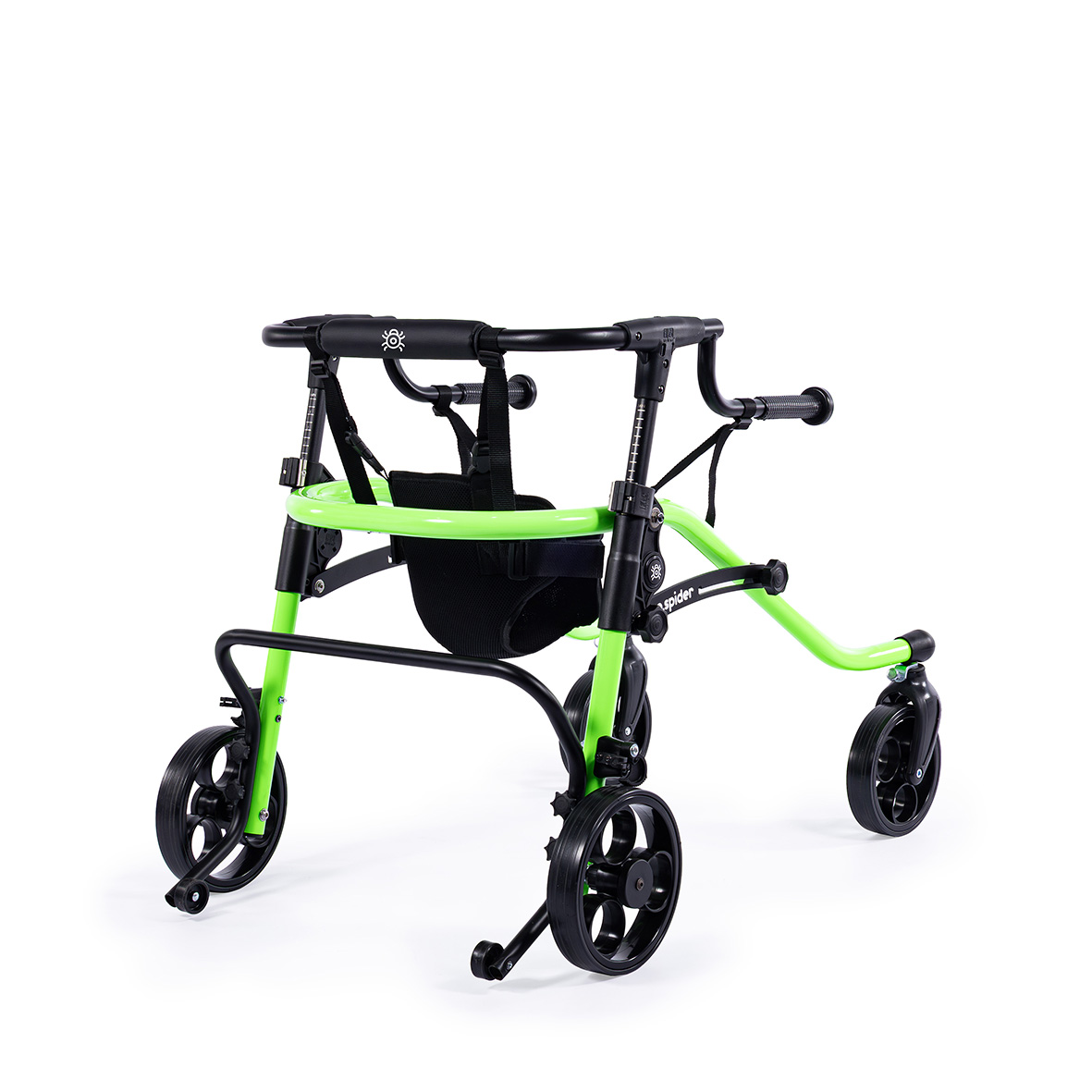

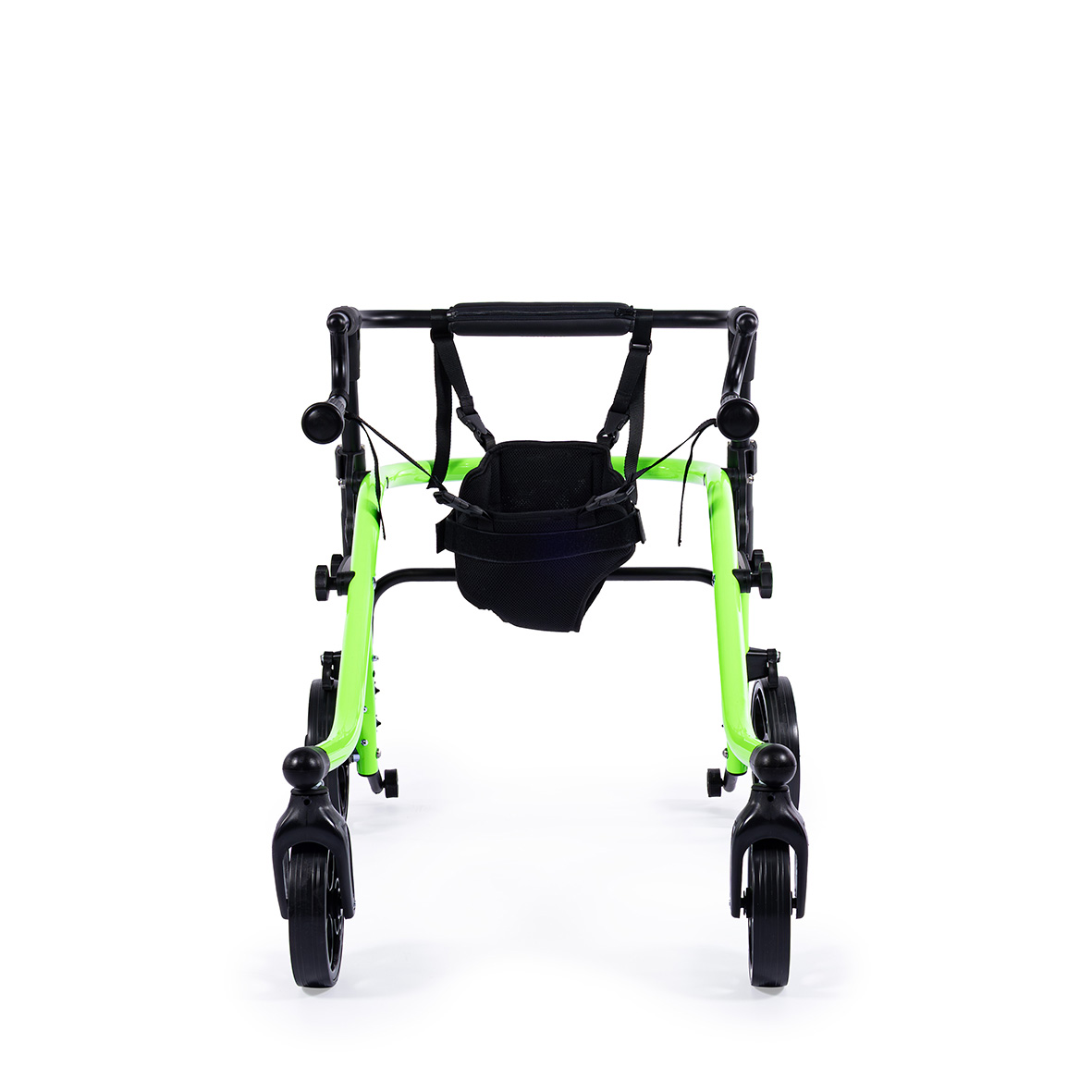

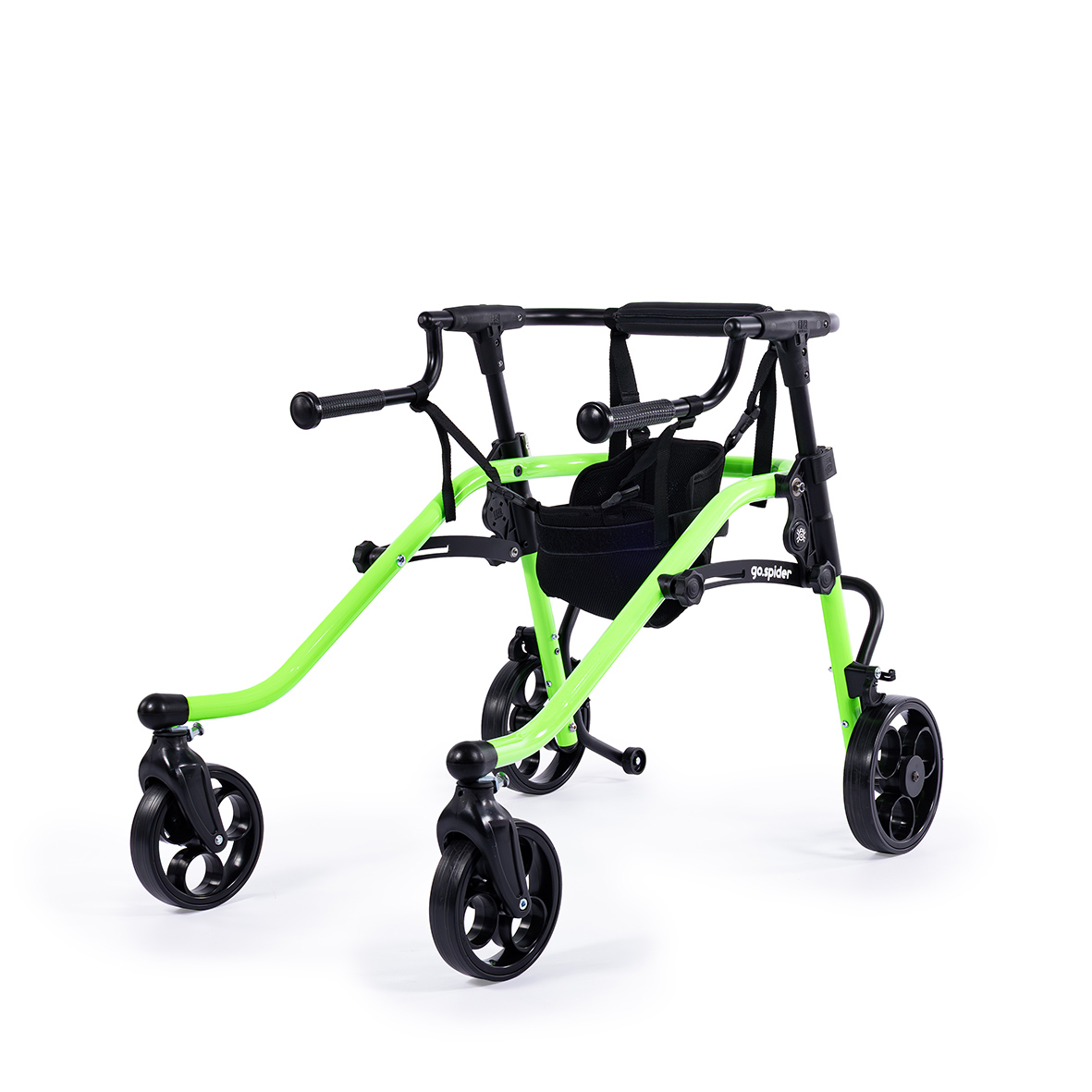

Orthopedic walker
Color:
Green
Actual color may vary depending on screen settings.
The go.spider orthopedic walker has been designed for users with mobility impairments who require support in learning or re-learning gait. It is available in three sizes:
Size 1 – for users with a height of 100–135 cm and a weight of up to 35 kg
Size 2 – for users with a height of 130–150 cm and a weight of up to 50 kg
Size 3 – for users with a height of 150–170 cm and a weight of up to 80 kg
Its simple, lightweight structure and compact dimensions make the go.spider suitable for both indoor and outdoor use. When folded, it takes up very little space, which makes storage and transportation much easier.
Product details
Construction
The go.spider orthopedic walker has a lightweight and compact structure. When folded, it takes up little space, which makes it easy to store and transport. The detachable upper frame additionally allows the walker’s dimensions to be reduced.
Adjustable Features
The walker is equipped with an adjustable upper extension that allows the handle height to be adapted to the user’s height. Both the standard handles and the forearm-support handles have adjustable tilt angles, enabling width modification and alignment with the user’s shoulder width.
Additionally, the pelvic support pads can be adjusted in width, height, and sideway to fit the frame, ensuring precise positioning and optimal stabilization.
Reverse-roll lock
The rear wheel locking system prevents the walker from moving backwards uncontrolled, which significantly improves the user’s safety.
Rear wheel friction brake
The rear wheels are equipped with adjustable friction brake, allowing smooth regulation of rolling resistance. This feature increases control over walking speed and enhances overall safety.
Front wheel swivel lock
The front wheels are equipped with a swivel lock function, which allows stable movement in a straight line and improves the walker’s handling on more difficult terrain.
Key Features
Parameters
Walker length
92 cm
Walker width
69 cm
Walker height
64 - 83 cm
Total weight
9,2 kg
Length of the walker when folded
100 cm
Width of the walker when folded
69 cm
Height of the walker when folded
29 cm
Max. user weight
50 kg
User height
130 – 150 cm
Measurement tolerance: +/- 20mm, +/- 1.5kg, +/- 1°
The manufacturer reserves the right to change technical parameters.
Regulations
Minimum settings for the upper extension
Maximum settings of the upper extension
Adjusting the spacing of the support handles
See the go.spider orthopedic walker in 360 view
Accessories:
Included
Additional
Anti-tipper
Rotating support handles
Safety harness
Hand brakes
Forearm support
Attendant guide bar
Seat
Travel bag
Straight support handles
Pelvic support
Informations
Indications
- Rehabilitation after surgical procedures, with weakness of the lower limbs with balance disorders, when the child is unable to move with crutches, etc.
Contraindications
Injuries to the upper limbs that disenable the user to suppoty himself on the walker.
Important
The choice of a medical device appropriate for a specific disease entity and condition of the user must be made with the help of a specialist doctor or physiotherapist.
Before use, read the user manual and the label or consult your doctor, as this medical device may not be suitable for you.
Downloads
